Wire Products & Galvanizing Solutions
Six product lines covering power transmission, infrastructure, fencing, prestressed concrete, fasteners, and cable protection — all manufactured with Hot Dip Galvanized steel to IS standards.
How We Make It
Every wire undergoes a 10-step process with ISI-standard testing at every critical stage.
Raw Material Wire Rod
High-quality low-carbon wire rods sourced conforming to IS:7887 for optimal softness and drawability.
Quality Control Check
Incoming raw material inspected for dimensional accuracy, tensile strength, and surface condition.
Mechanical Descaling
Wire rod surface cleaned mechanically to remove mill scale before drawing.
Wire Drawing to Size
Rods drawn through precision dies to achieve exact SWG diameters within ±2.5% tolerance.
Annealing Heat Treatment
Drawn wire annealed to restore ductility and achieve required softness for downstream processing.
HCl Acid Cleaning
Wire pickled in hydrochloric acid to remove oxides and prepare a chemically clean surface.
Flux Dipping
Cleaned wire dipped in flux solution to prevent re-oxidation and promote zinc adhesion.
Zinc Furnace Coating
Wire passed through molten zinc bath at controlled temperature for uniform hot-dip galvanizing.
Sampling & Testing
Coated wire sampled for zinc coating weight (GSM), adhesion, and dimensional checks per IS standards.
Packing & Dispatch
Finished wire coiled, tagged with dimensions, weight and length, and packed for safe dispatch.
Who Uses Gallops Wire
Our products power and protect infrastructure across Gujarat and 8 Indian states.
Power Transmission
ACSR conductor cores, earth wires, and stay wires for high-voltage transmission towers and distribution poles.
Infrastructure & Construction
PC wires and strands for bridges, flyovers, railway sleepers, and prestressed concrete structures.
Solar Power Projects
Perimeter chain link fencing, barbed wire, and full EPC turnkey contracts for solar farm installations.
Agriculture & Farming
Field boundary fencing, crop protection, and livestock enclosures using GI chain link and barbed wire.
Cable & Electrical Industry
Cable armour round wires and formed strips for underground power, submarine, and optical fibre cables.
Industrial & General Engineering
Binding wire, collated nails, fasteners, and earthing coils for factories, construction, and packaging.
Six Product Lines
High Strength GI Wire Rolls
Hot-dip galvanized steel wires manufactured to Extra High Strength (EHS), Ultra High Strength (UHS), and Mega High Strength (MHS) grades. Used for overhead transmission lines, stay wires, and structural applications requiring maximum tensile performance.
| Grades | EHS / UHS / MHS |
| Wire Diameter | 1.60 mm – 4.00 mm (8–16 SWG) |
| Coating Weight | 120–300 GSM (as per grade) |
| Zinc Purity | 99.99% SHG Zinc |
| Standard | IS 2629, IS 4759 |
- Pure hot-dip galvanized — superior corrosion resistance
- Available as GI Plain Wire, GI Earthing Wire, and GI Strand Wire
- Used in chain link, barbed wire, earthing coils, and cable industries
- Conforms to IS:7887 raw material standards
Conductors & Earth Wires
Precision-stranded galvanized steel cores for ACSR, GAP Type, and HTLS overhead conductors. Also includes galvanized stranded earth wires and shield wires for high-voltage transmission towers and distribution networks.
| Types | ACSR Core / GAP Type / HTLS |
| Earth Wire | 7-Strand GI Stay Wire |
| Standard | IS 2633, IS 6586 |
| 7/10 SWG | 7 × 3.15 mm |
| 7/8 SWG | 7 × 4.00 mm |
- Stranded cores for ACSR, GAP Type, and HTLS conductors
- Galvanized stranded earth wires and shield wires
- Approved for GUVNL, GETCO, and all state electricity board specs
- 7-strand twist for maximum tensile strength

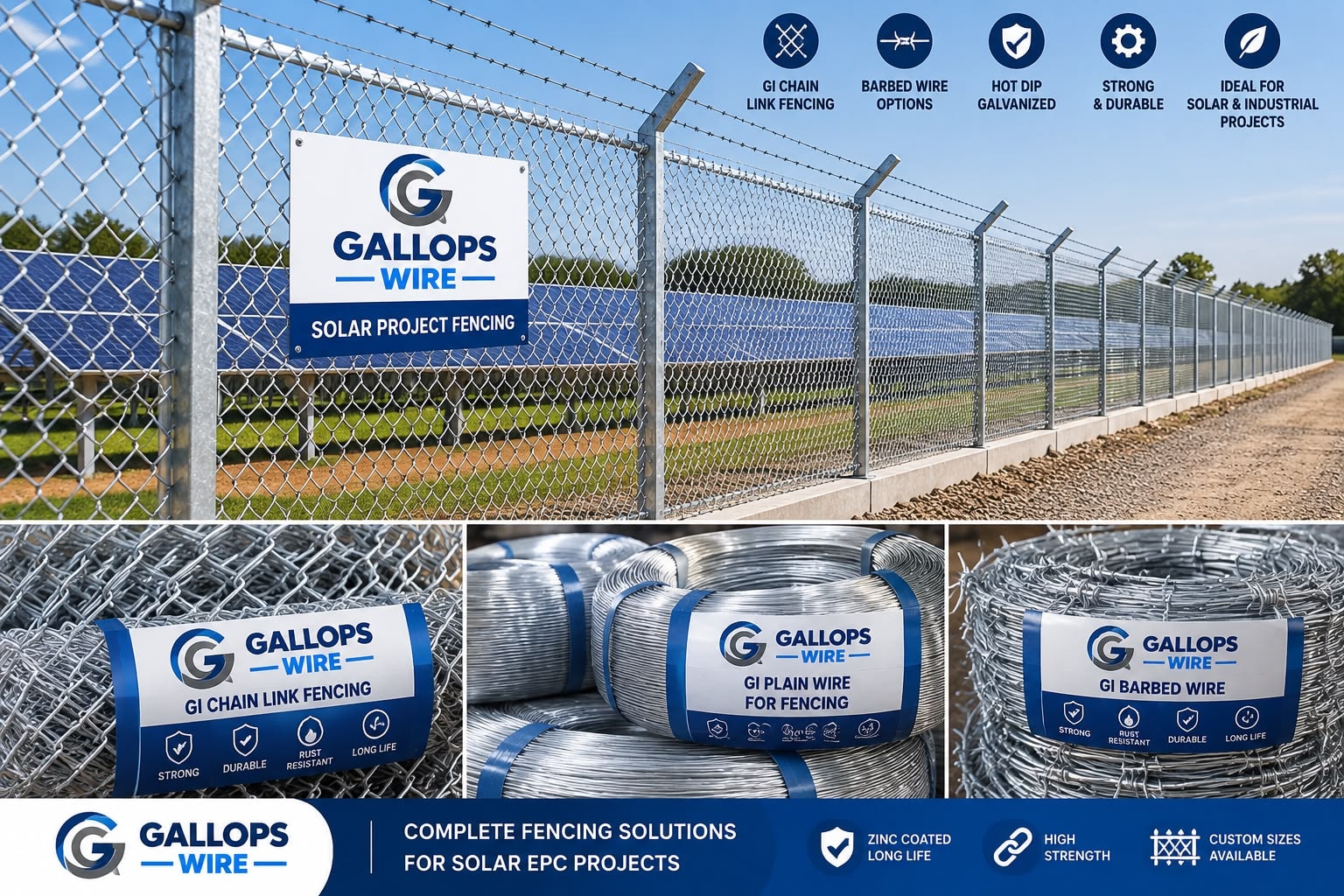

Fencing, Agricultural & EPC Solar Fencing
Complete fencing solutions — hot-dip galvanized chain link and IS:278 barbed wire for agriculture and security, plus full turnkey EPC contracts for solar farm perimeter fencing. Gallops supplies all materials (GI angles, chain link, barbed wire) and executes the fencing as per the solar agency's exact design specifications.
| Surface Treatment | Galvanized (Hot Dip) |
| Wire Diameter | 2.5 mm to 4.00 mm |
| Mesh Size | 2 inch to 4 inch |
| Height | 3 feet to 10 feet |
| Barbed Wire | IS:278 — 12×12, 12×14, 14×14 |
| EPC Service | Full Turnkey — Supply + Execution |
| EPC Supply | GI Angles, Chain Link, Barbed Wire |
- Chain link fencing — flexible fabric adapts to uneven terrain and slopes
- Barbed wire — double-twisted, uniform barb spacing per IS:278
- EPC Solar Fencing — complete turnkey supply and execution
- Covers complete solar farm perimeter as per agency design
- Ideal for solar developers, EPC contractors & government solar projects
- High corrosion resistance for long outdoor service life
PC Wires & Strands
High-tensile indented and plain PC wires and 7-wire PC strands for prestressed concrete structures. Used in bridges, railway sleepers, building slabs, and large-span civil engineering projects.
| Types | Indented PC Wire / Plain PC Wire / 7-Wire PC Strand |
| Standard | IS 1785, IS 6003 |
| Application | Bridges, Railway Sleepers, Slabs |
| Stay Wire | 7-Strand GI Stay Wire |
- Indented and plain PC wires for prestressed concrete
- 7-wire PC strands for bridges and large-span structures
- Strict dimensional and tensile tolerances per IS 1785 / IS 6003
- Safety-critical — approved for GUVNL, GETCO, and railway specs
Fasteners & Binding Wires
Collated coil, strip, and screw nails for pneumatic nail guns used in construction, packaging, and pallet manufacturing. Also includes GI binding wire for reinforcement tying and general construction use.
| Collated Types | Coil Nails / Strip Nails / Screw Nails |
| Binding Wire | GI Binding Wire — 8 to 16 SWG |
| Bulk Nails | Standard & Custom Lengths |
| Application | Construction, Packaging, Pallets |
- Collated nails for pneumatic nail guns — coil, strip, and screw types
- GI binding wire for reinforcement tying and general construction
- Bulk nails in standard and custom lengths
- Hot-dip galvanized for corrosion resistance
Cable Armour Wires
Precision-formed galvanized steel armour wires and strips for mechanical protection of underground power cables, submarine cables, and optical fibre cables. Available in round wire and formed/flat strip profiles.
| Types | Round Wire / Formed Wire / Flat Strip |
| Application | Underground Power / Submarine / OFC Cables |
| Surface | Hot-Dip Galvanized |
| Profile | Single-core & Multi-core constructions |
- Round wire and formed/flat strip profiles available
- Suits single-core and multi-core cable constructions
- Mechanical protection for underground and submarine cables
- Hot-dip galvanized for long-term corrosion resistance
Capacity & Certifications
| Parameter | Specification |
|---|---|
| Galvanizing Standard | IS 2629 |
| Monthly Capacity | 500+ tonnes |
| Zinc Purity | 99.99% SHG Zinc |
| Coating Weight | 120–300 GSM (as per grade) |
| Wire Diameter Range | 1.60 mm – 4.00 mm (8–16 SWG) |
| Quality Certifications | BIS, ISO 9001:2015, ISO 14001:2015 |
Need a Custom Quote?
Send us your specifications and we'll respond within 24 hours with pricing and lead times.
